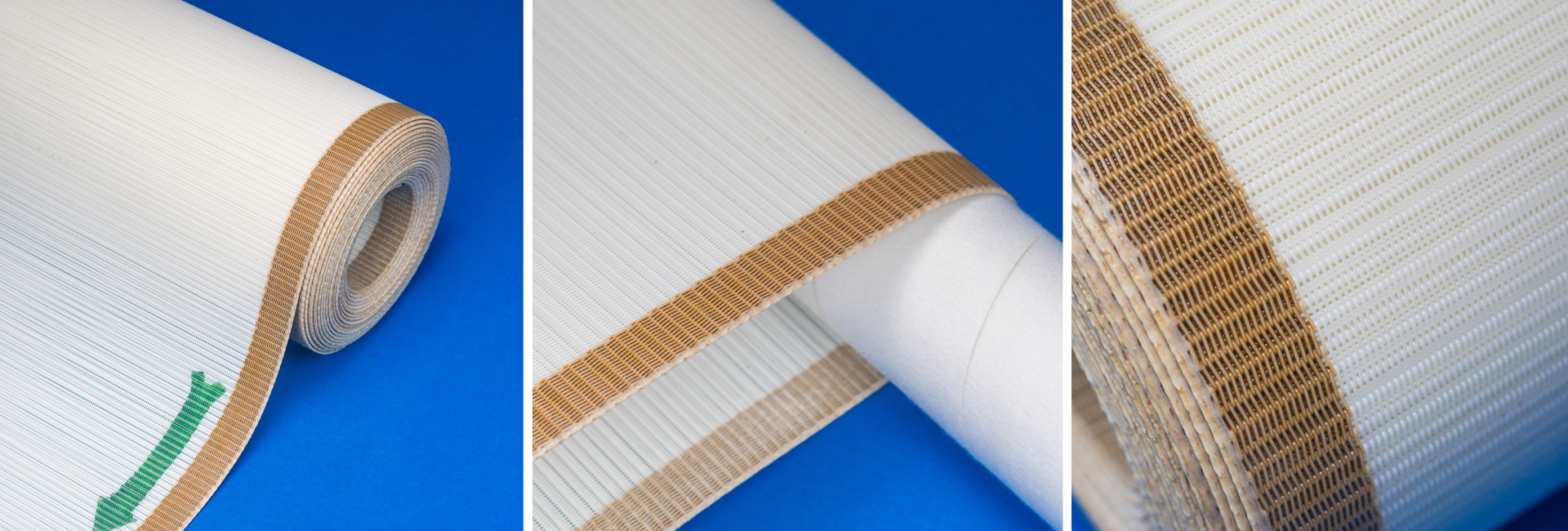

Polyester spiral press belt is suitable for wrapping paper, cultural paper, board paper and pulp board with large drying quantity. Widely used in paper making, coal mine, food, medicine, printing and dyeing and rubber products industry, suitable for horizontal belt vacuum pulp washing machine bottom net (instead of rubber belt), can also be used as conveyor belt and composite machine supporting net belt. Polyester screw dry mesh has the advantages of large air permeability, flat mesh surface, arbitrary disassembly, good strength and long service life. Special material spiral dry mesh also has high temperature resistance, high wear resistance, aging resistance and other characteristics.

Features:

· Flat Joints Three kind of joints:self-ring, milet-ring, double pins.Joints thickness is same, no roller skipping. Joints is flat and no mesh marks, no deviation, no wire hanging.

· Durable and wear-resistant Mono filaments are uniform,flexibility is good,belts tensile strength is high and anti wrinkle ability is strong.

· Advanced Technology Wrap and weft weaving technology is advanced,air permeability is uniform, no arching, no wire hanging and no deforming.

Applications:

· Wastewater treatment (WWTP), municipal wastewater, industrial wastewater.

· Coal tailing dewatering, mine tailing dewatering, sand washing, aggregate washing.

· Pulp and paper sewage.

· Fruit and vegetable squeezing.

· Palm oil sludge dewatering

· Coconut milk processing

· Tapioca pulp dewatering

· Dairy sludge dewatering

· Winery sludge dewatering

Polyester spiral belts are recommended in applications where permeability is required to facilitate the flow of air or liquid. Interlocking spirals connected with mono filament pins .Sufferers available to reduce permeability. Smooth uniform surface.
