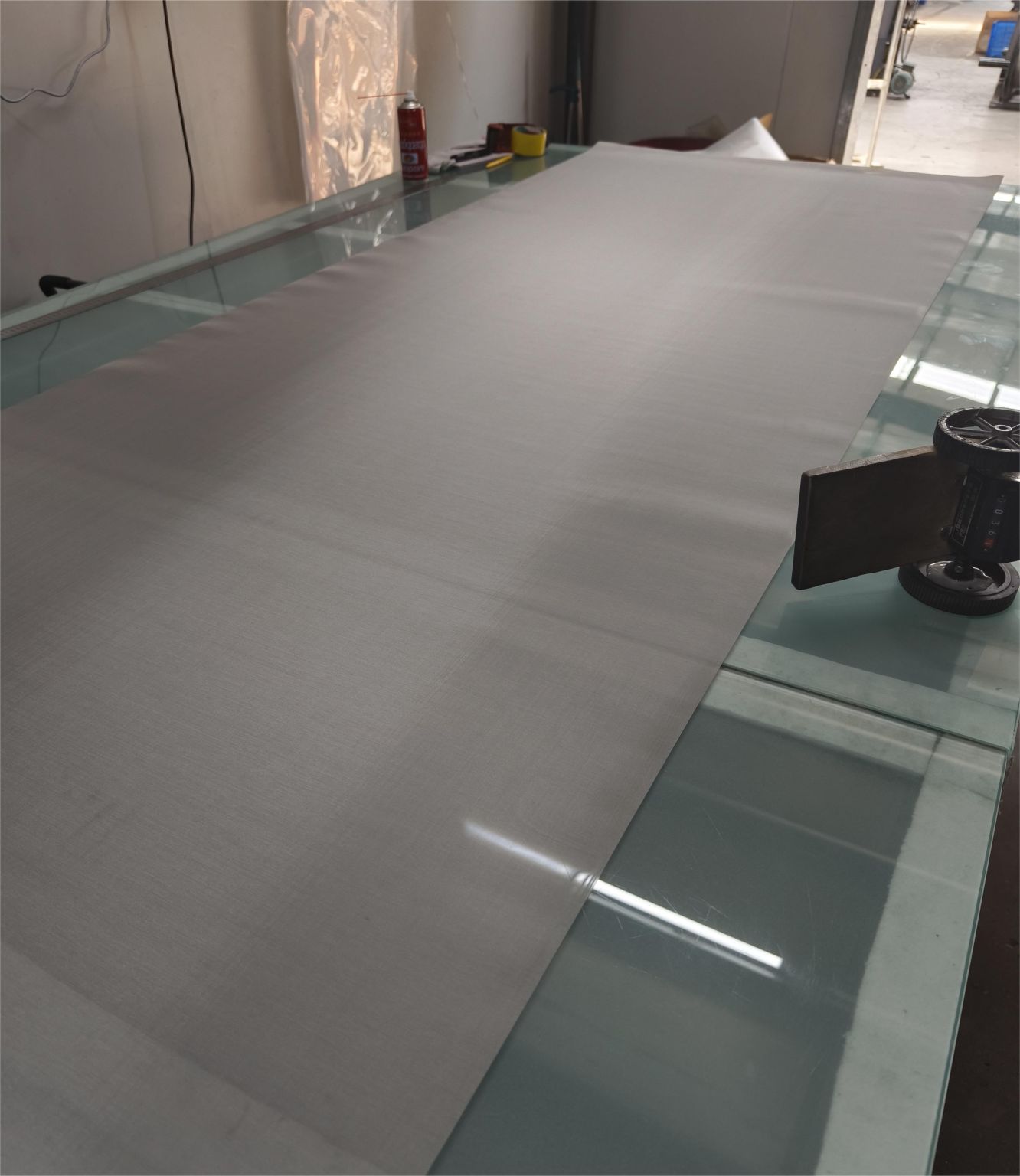

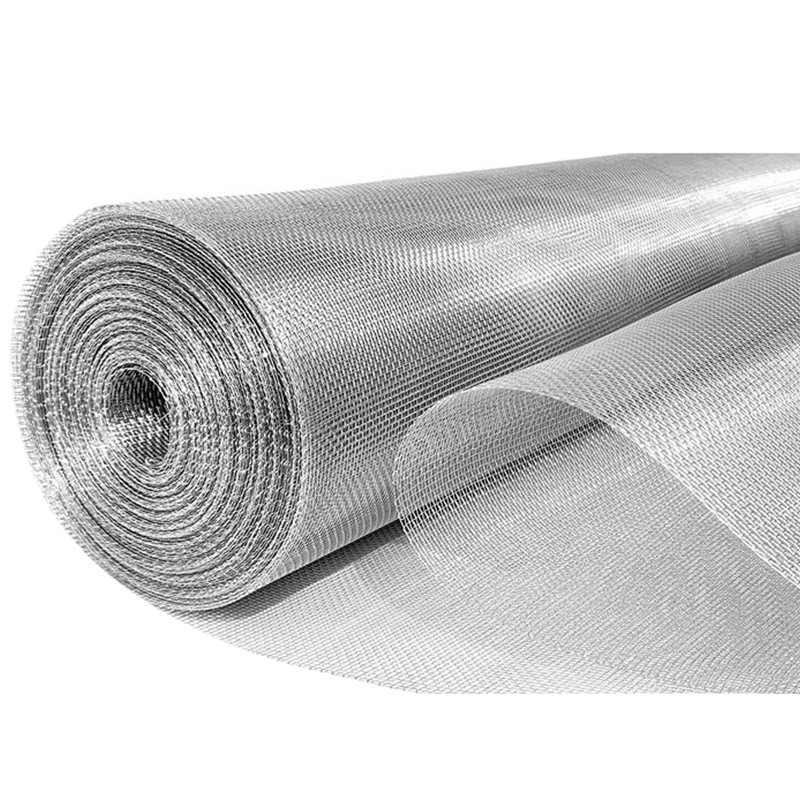

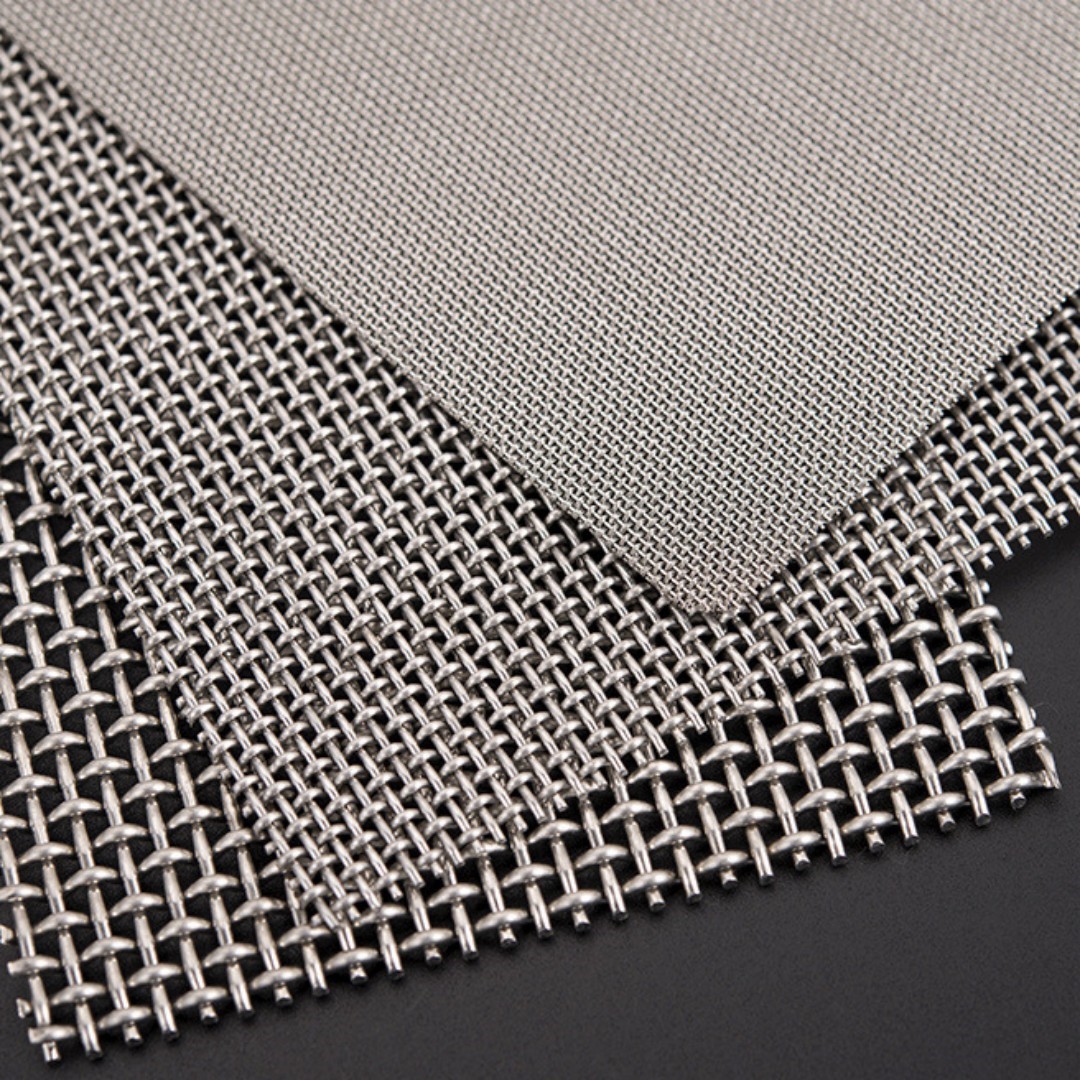

Square weave wire cloth, also known as industrial woven wire cloth, is the most widely used and common type. We offer a broad range of industrial woven wire cloth – coarse mesh and fine mesh in plain and twill weave. Since wire cloth is produced in such varying combinations of materials, wire diameters and opening sizes, its use has been widely accepted throughout the industry. It is extremely versatile in application. Typically, it is often used for screening and classifying, such as test sieves, rotary shaking screens as well as shale shaker screens.

SPECIFICATIONS

Material: stainless steel 304, 304L, 316, 316L, 321, 430, 317L, 904L, etc..

Wire diameter: 0.02–2 mm

Mesh count: 2.1–635 mesh

Aperture width: 0.02–10.1 mm

Open screening area: 25% – 71%

MANUFACTURING&TEST STANDARD

+ ASTM E2016 Standard Specification for Industrial Woven Wire Cloth

+ ASTM E2814 Standard Specification for Industrial Woven Wire Filter Cloth + ISO 9044 Industrial Woven Wire Cloth – Technical Requirements and Tests + ISO 4783-1 Industrial wire screens and woven wire cloth – Guide to the choice of aperture size and wire diameter combinations

+ ISO 3310 Test sieves – Technical Requirements and Testing
