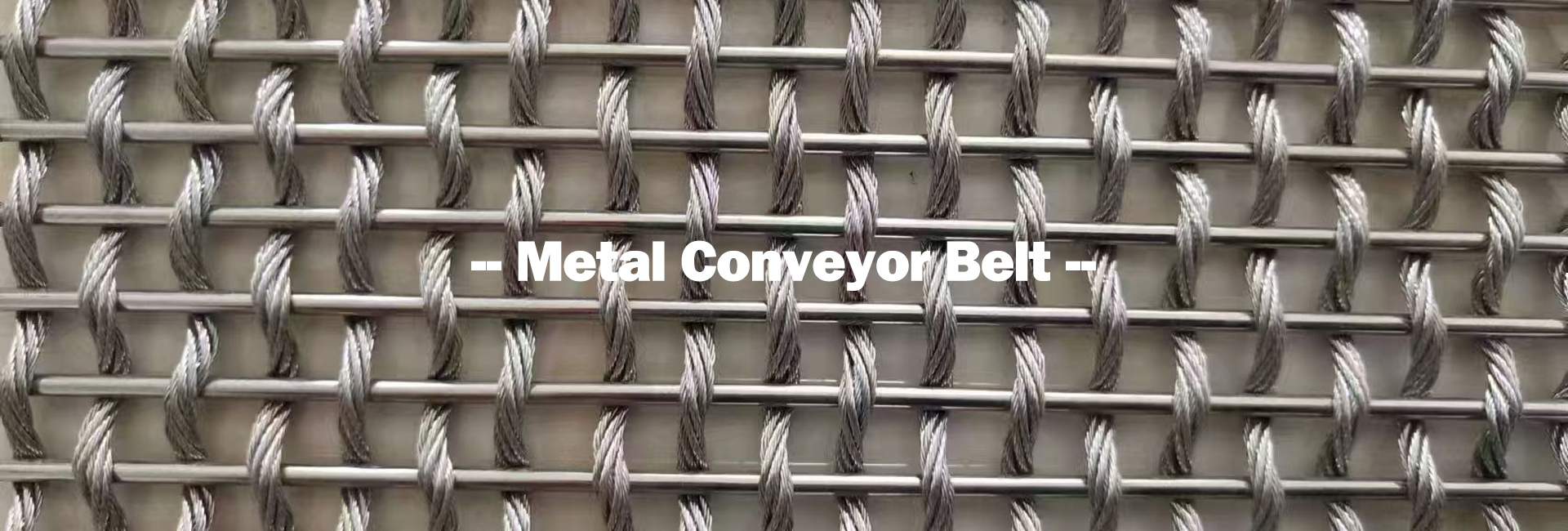

SOBON has designed and provided conveyor belt solutions in forming sections, binder sections, and dryer sections in the non woven industry and fiberglass tissue industry. The raw material of our non woven stainless steel mesh belts is made of: SS304, SS316, and SS316L. The wire dimension is stable, and the surface is flat, without any defects, weaves, or wrinkles.

SOBON process belts made of metal fabric have proven their worth in manufacturing PVC floor coverings,foam sheet and carpets for decades. Potential applications range from drying PVC to fixing dyes in carpet manufacturing. In all of these processes, the conveyor belts must be designed to cope with ever shorter production times, higher temperatures, and the use of chemical substances such as plasticizes. We achieve this by selecting the most suitable alloys and material components. This allows our customers to benefit from SOBON conveyor belts that are individually tailored to their respective production requirements.

Characteristic:

Construction: Plain weave

Size: Customized on client's requirement

Material: SS304, SS316, SS316L

Warp Density: 8 roots/cm

Weft Density: 7 roots/cm (3,5 pcs are available)

Warp Diameter: 7x0.21mm

Weft Diameter: 0.50mm

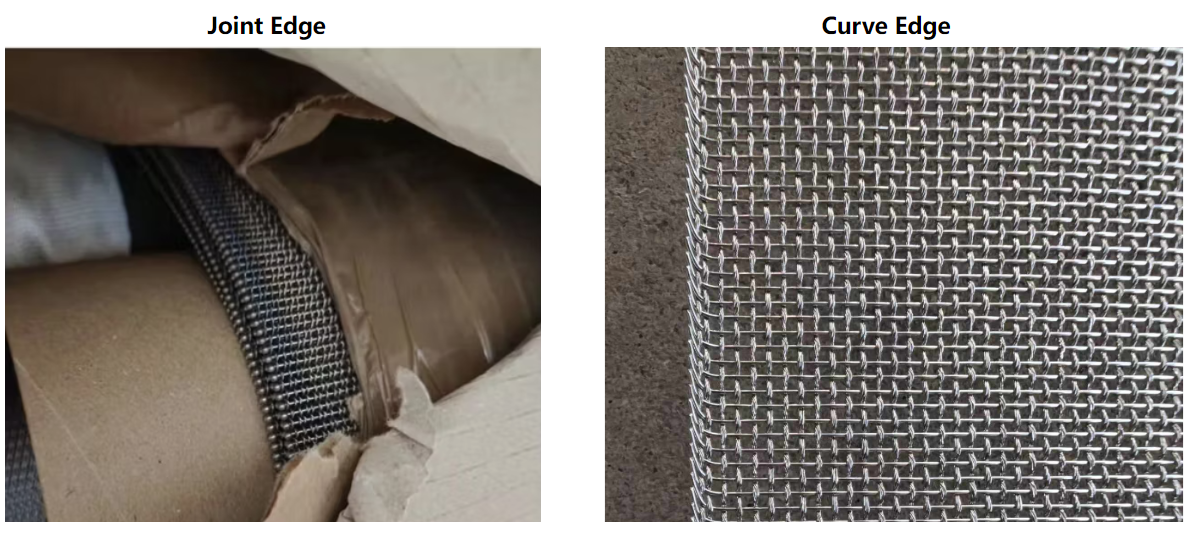

Stoke Back Edges: Open ended or on your requirement

The Max. Temperature:650℃

Features:

Suitable material quality (stainless steel, cast steel)

High degree of cross-stability

Optimum flatness

Durable Easy belt control

Optimized for easy cleaning High temperature resistance for extremely efficient drying.
