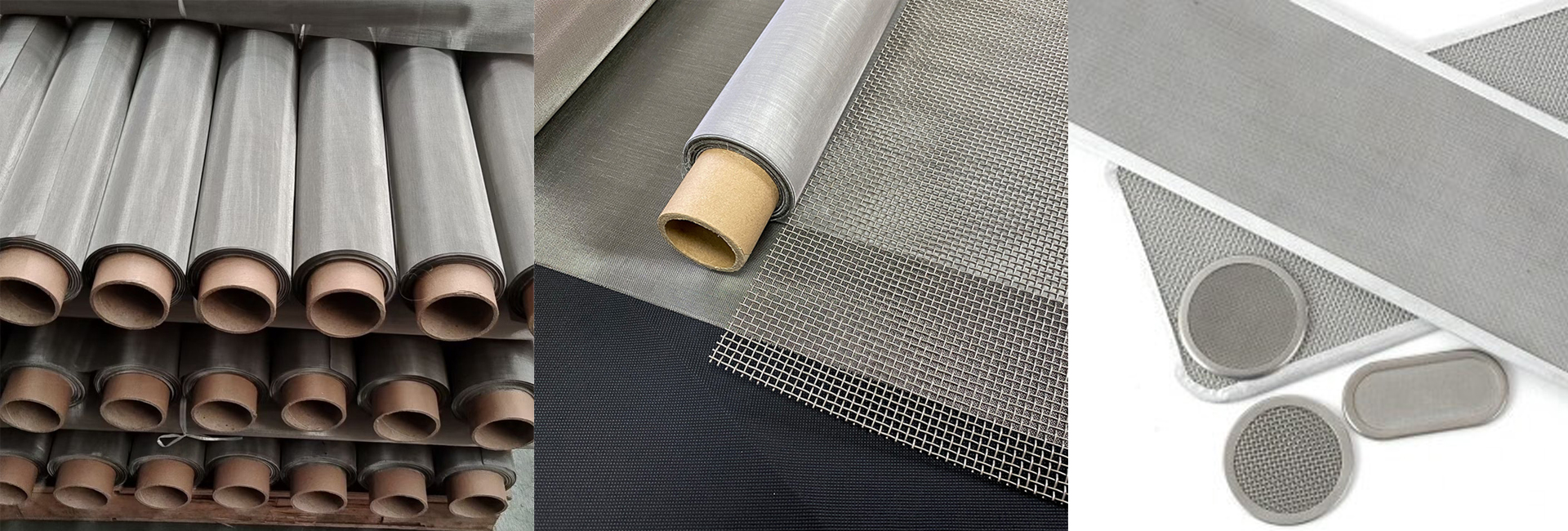

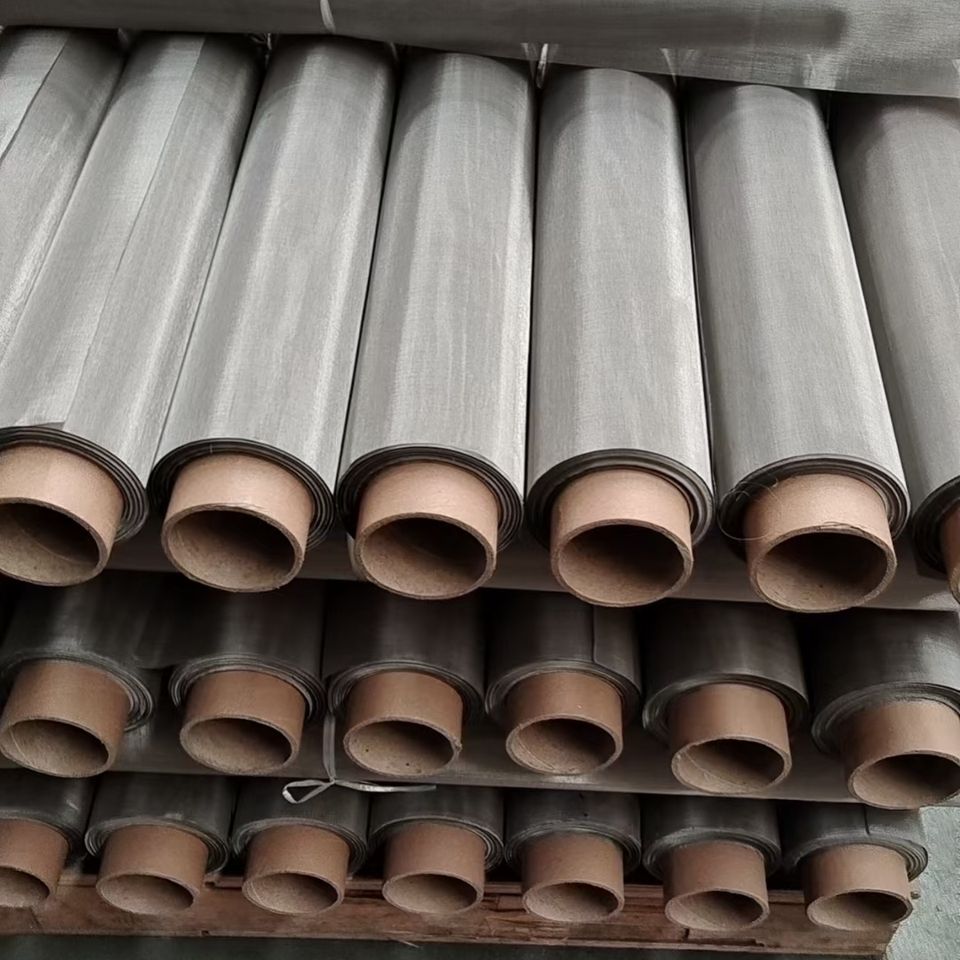

Stainless Steel Woven filter cloth, also known as industrial metal filter cloth, generally is manufactured with closely spaced wires to offer enhanced mechanical strength for industrial filtration. We offer a full range of industrial metal filter cloth in plain dutch, twill dutch and reverse dutch weave. With filter rating ranges from 5 μm to 400 μm, our woven filter clothes are produced in a wide combinations of materials, wire diameters and opening sizes to adapt to different filtration demands. It is widely used in various filtration applications, such as filter elements, melt & polymer filters and extruded filter.

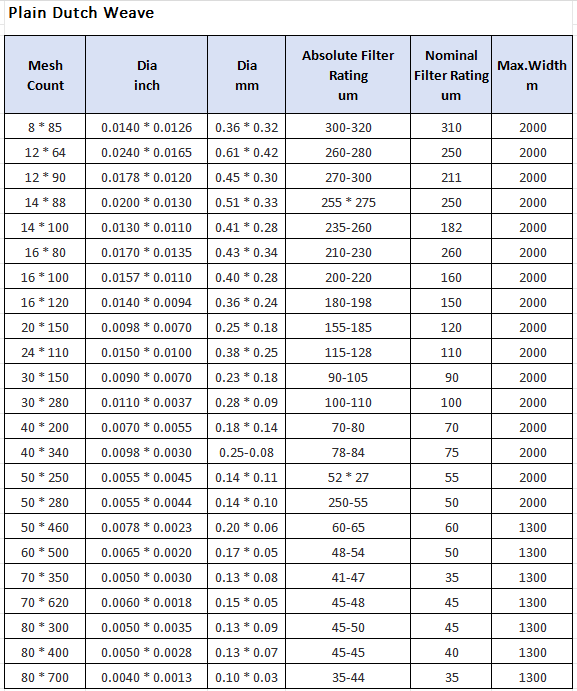

Plain Dutch Weave
This simple dutch weave is the most common filter cloth. Generally, the diameter of warp wire is larger than the weft wire. Warp and weft wires are interwoven closely together at set intervals. It is ideally suited for filtration applications, as well as the separation of slurry and liquid materials.

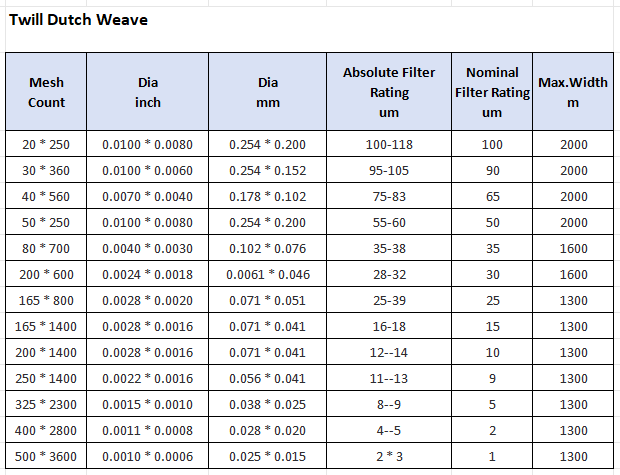

Twill Dutch Weave
This weave type offers a significant upgrade in strength over plain dutch weave wire cloth. It actually combines the Dutch and twill weaving process to produce an extremely fine mesh filtering cloth that is created by passing weft wires over and under two warp wires. As a result, it is suitable for various liquid and gas filtration applications.

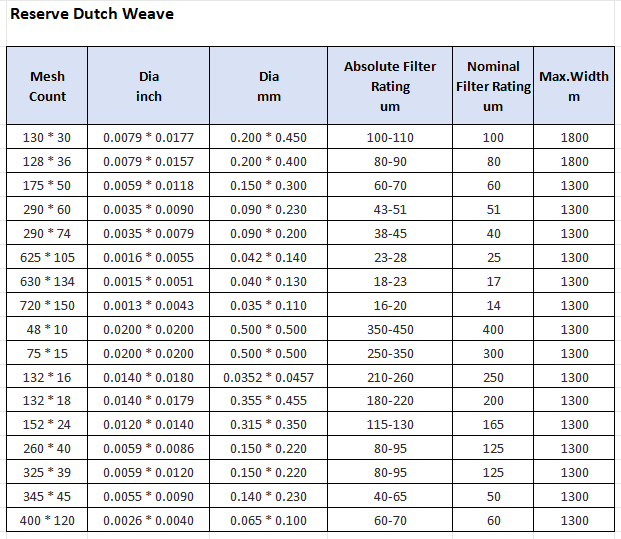

Reverse Dutch Weave
This weave type is in a reverse of the plain dutch weave wire arrangement. The diameter of warp wire is smaller than the weft wire. Warp and weft wires are interwoven closely together at set intervals. It is well-suited for high pressure vertical and horizontal filter leaf applications where back washing and filter cake removal are important.
3 Heddle Twill Dutch Weave
Similar like 3-heddle weave, this type of weave has a larger diameter of warp wire than the weft wire. Besides, weft wires are closely arranged, leaving no gaps between weft wires. As a result, it is suitable for filtration applications that require high filtration accuracy and heavy load bearing capacity
SPECIFICATIONS
Material: stainless steel 304, 304L, 316, 316L, 321, 430, 317L, 904L, etc. Filter rating: 2–400 μm
