Based on the chemical and physical properties of nickel wire, nickel woven mesh has good electrical conductivity, corrosion resistance and acid-base resistance accordingly. It is suitable for gas, liquid filtration and other media separation under strong acid and alkaline conditions. It is also widely used in various renewable new energy industries such as hydrogen production, color-alkali and fuel cells.

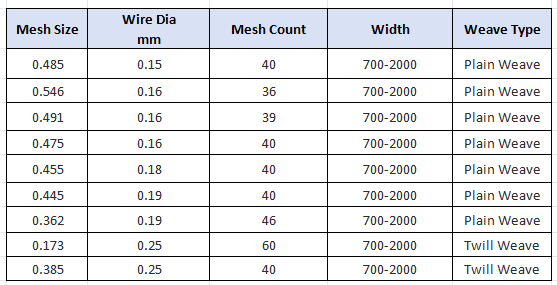

SPECIFICATIONS

Material: N6/Nickel 200/N02200

Wire Diameter:0.15-0.25mm

Mesh Count:36-60 Width:700-2000mm

Standard: ASTM B162

MANUFACTURING&TEST STANDARD

ASTM B612 Standard Specification for Nickel Plate, Sheet and Strip
